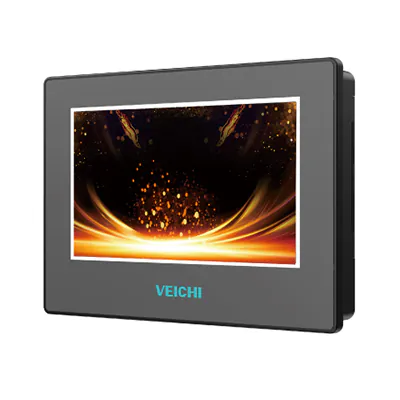

VI30-070-CNH HMI Veichi VI30 Size 7 in

Є в наявності
VI30-070-CNH HMI Veichi VI30 Size 7 in
Клікніть для збільшення
Veichi
Є в наявності
7 470 UAH
brand: Veichi
Series: VI30
Panel type: графическая
Diagonal: 7 inch

delivery-iconDelivery and payment methods

  • Nova Poshta OfficeBy Nova Poshta to a branch or courier to the address
  • OplataBank transfer payment

delivery-iconService and Warranty

  • 24-month Warranty
  • Product return within 14 days
  • Official Service Center

delivery-iconTechnical support

  • Help with setup and selection
  • Interested in this product?
    Our specialist will advise you.
  • Write ⤵
    Telegram VIA TELEGRAM
    Write ⤵
    Viber VIA VIBER
  • Characteristics
  • Documentation
  • Reviews (1)
brand Veichi
Series VI30
sku VI30-070-CNH
Replacement (If discontinued) No
Panel type графическая
Matrix type TFT LCD
Diagonal 7 inch
Chroma 262K
Width 800 mm
Height 480 mm
number of ports 3
Interface RS232, RS485, RS422
Protocol Modbus RTU
USB port 1 host/1 slave USB
Additional Cortex A7 multi-core 800MHz, 128MB Flash + 128MB DDR3, DC24V, 5W, 250 cd/m²
Color rendering Black
Video Thumbnail
Video Thumbnail
Documents by language

Ukrainian / English / Russian

Chastotnik.ua

Practical setup guides

Chastotnik.ua materials for wiring and setup. These are not official manufacturer documents.

Guide Replacing Delta VFD-EL with Veichi AC10: Migration Guide An engineering guide for retrofitting industrial systems by replacing obsolete Delta VFD-EL frequency inverters with modern Veichi AC10 drives. Contai... Go to Guide Replacing a European VFD with Veichi: NPN/PNP, PLC jumper, COM vs GND The most common scenario when replacing a European drive (Schneider Altivar, Siemens, LS, Danfoss) with Veichi looks like this: the power section is w... Go to Guide COM or GND: why the buttons do not work on a Veichi VFD A typical picture after installation: the Veichi VFD starts from the keypad, the parameters are entered, but the external Start/Stop buttons produce n... Go to Guide PLC jumper on Veichi: wiring PNP/NPN sensors and pushbuttons On the control board of Veichi AC10 (from 7.5 kW) and AC310 three terminals sit side by side: +24V, PLC and COM. Between them is a small jumper. Its p... Go to Guide VFD grounding and stray voltage on the enclosure (PE, >5V) A fairly common complaint after installation: voltage "tingles" on the motor housing, the cabinet or the drive itself, while the keypad or sensors sta... Go to Guide Shielding a 4-20mA sensor: which end to ground, 15 cm separation A pressure or flow sensor in pump automation almost always outputs a 4-20 mA current signal. On Veichi it is wired to an analog input that can operate... Go to
Product Reviews
1
5 1
4 0
3 0
2 0
1 0
О
Олег К.
★ ★ ★ ★ ★
30.10.2024

They installed this Veichi VI30-070-CNH on our line to replace the old panel. What can I say, the 7-inch screen is really convenient, everything is clearly visible. The colors are rich, not faded like it sometimes happens. The processor is fine, doesn't lag. Connected it quickly, works like clockwork over Modbus. There is a USB port for firmware updates or data dumping, which is a plus. For an operator who works with it all day long – just right) And the price, as I heard, is reasonable.
