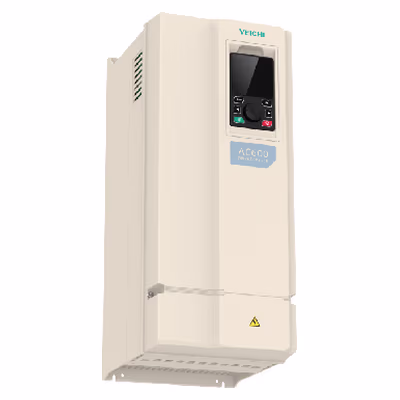

AC600-T4-5R5G/7R5P Variable Frequency Drive AC600 5.5kW 3-ф/380

sku: AC600-T4-5R5G/7R5P
AC600-T4-5R5G/7R5P
Клікніть для збільшення
Veichi
see_alternalive_items
Ми зрадістю підбермо Вам аналог Професійний підбір за тел. (093) 1701425
brand: Veichi
Series: AC600
Supply input: 3x380 V
Сurrent: 13 A

delivery-iconDelivery and payment methods

  • Nova Poshta OfficeBy Nova Poshta to a branch or courier to the address
  • OplataBank transfer payment

delivery-iconService and Warranty

  • 24-month Warranty
  • Product return within 14 days
  • Official Service Center

delivery-iconTechnical support

  • Help with setup and selection
  • Зацікавив товар?
    Наш продавець проконсультує Вас.
  • Characteristics
  • Documentation
  • Reviews (0)
brand Veichi
Series AC600
sku AC600-T4-5R5G/7R5P
Main Power 5.5 kW
In Second Power mode 7.5 kW
Supply input 3x380 V
Supply output 3x380 V
Mmax (1 min) 150 %
Сurrent 13 A
Rated current for the second power 17 A
Imaх_60c 0
Maximum output frequency 0~599Hz Hz
IP protection level 20
EMC filter +
Height 320 mm
Width 138 mm
Depth 211.5 mm
Braking module +
Scalar control mode +
Vector control mode without encoder +
Linear U/f control law +
Quadratic control law U/f2 +
Maximum number of fixed speeds 16
Number/type of analog inputs 2 (AI1: 0~10V/0~20mA, AI2: -10V~10V/-20mA~20mA)
Number of discrete inputs 5
Number/type of analog outputs 1 channel 0~10V
Number of discrete (transistor) outputs 2
Number of relay outputs 1
ModBus RTU protocol +
ModBus TCP/IP protocol опция
CANopen protocol опция
PROFIBUS DP protocol опция
Ethernet IP опция
DeviceNet protocol опция
BACnet protocol опция
Ethercat protocol опция
RS-485/Modbus interface +
