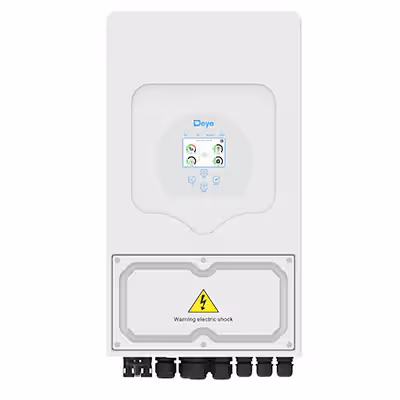

The Deye SUN-5K-SG05LP1-EU is a highly reliable 1-phase hybrid inverter with a 5 kW capacity, designed to work with low-voltage 48V battery systems. It features 2 independent MPPT trackers, allowing optimized solar harvesting from differently oriented roof sections. Offering a maximum battery charging and discharging current of 120A, it enables fast recharging of your storage system. The transfer time of less than 4 ms serves as a seamless UPS, protecting sensitive home appliances and networking gear. It supports cascading up to 16 units in a single parallel configuration.
Typical Applications:
- Efficient backup and off-grid power supply for apartments, small houses, and cottages with single-phase utility grids.
- Uptime guarantee for home offices, communication closets, server nodes, and small retail premises.
Critical Warning: Ensure that connection to the battery bank is made via copper DC cables with a minimum cross-section of 50-70 mm² (for currents up to 150A) and appropriate safety fuses. When using Lithium batteries, configure the CAN/RS485 BMS protocol to code "00" for Pylontech or "12" for Felicity.
Deye SUN Hybrid Solar Inverters — The Industry Standard for Off-Grid Power Stability in Ukraine
The Deye SUN hybrid solar inverter series stands as the most recognized and requested off-grid energy storage solution in Ukraine. Designed for maximum versatility, the Deye family covers low-voltage single and three-phase models (operating with 48V battery banks, delivering an industry-leading charging current up to 240A on 12 kW), as well as heavy commercial three-phase high-voltage systems up to 50 kW (compatible with 160V–800V battery strings). The core engineering highlight of the Deye SUN series is its structural flexibility: supporting 100% unbalanced three-phase output, seamless AC coupling retrofits, and a dustproof/waterproof steel enclosure rated IP65.
Typical Applications for Deye SUN Series
- High-Efficiency Backup for Complex Phase Layouts: The 100% unbalanced phase output allows Deye to divert full single-phase power capacity onto the most heavily loaded phase without tripping adjacent phases.
- Scalable Commercial Solar Arrays (Up to 16 Units): Parallel capacity up to 16 units lets B2B engineering firms build massive modular energy storage systems for manufacturing plants, offices, and cold storage warehouses.
- Dynamic AC Coupling & Diesel Generator Auto-Start: Deye SUN dynamically mixes PV solar, grid utility, and backup generators. The integrated AC coupling frequency shift control allows it to retrofit legacy grid-tied solar systems.
What Differentiates Deye SUN from Competitors
| Parameter | Deye SUN (LP/HP) | Veichi VH Series | Growatt SPH/MOD |
|---|
| Parallel Scalability limit | Up to 16 units (Single/3-Phase) | Up to 10 units (Single/3-Phase) | Up to 6 units (option cards required) |
| Max Battery Charge Current | Up to 240A (industry record) | Up to 190A | Up to 120A |
| Phase Balancing (3PH) | 100% unbalanced phase output | Supported | Strict symmetrical phase load required |
| AC Coupling Technology | Built-in frequency shift loop | Built-in | External logic controllers required |
A key B2B advantage of the Deye SUN series is its ability to discharge and charge low-voltage (48V) battery packs at exceptionally high currents. This allows the system to rapidly recharge massive battery banks during short grid-on intervals.
When Deye SUN is NOT Suitable
- For simple single-phase residential off-grid sites under 6 kW where a large three-phase system is commercially redundant — select the Veichi SI range.
- For B2B projects requiring a solid, straightforward three-phase solar hybrid without high-end AC coupling features — select the rugged Veichi VH (VHT) range.
Our Practical On-Site Observations
Deye SUN boasts the largest number of pre-programmed Lithium battery BMS protocols in our catalog. Supporting over 30 battery brands via CAN/RS485 data buses, installers must select battery type Lithium in the menu and specify the correct BMS protocol index (such as 00 for Pylontech, 12 for Felicity, etc.). Pay careful attention to DC power cabling dimensions — running a 240A charging cycle through undersized DC cables will cause extreme heat buildup and trigger inverter emergency shutdown. Premium compatible batteries are available in our UPS lithium batteries catalog.
