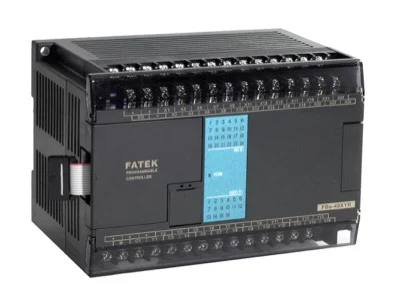

FBs-60XYJ-D24 Fatek FBs-60XYJ-D24 — mixed PNP I/O module
Є в наявності
sku: FBs-60XYJ-D24
Є в наявності
14 861 UAH
brand: Fatek
Series: FBs-Extension
module type: EXT
supply_voltage:
output_type:
Interface:
Number of inputs: 36
Relay outputs: 0
USB port: No
Number of digital outputs: 24
high_speed_outputs:
Delivery and payment methods
By Nova Poshta to a branch or courier to the address
Bank transfer payment
Service and Warranty
- 24-month Warranty
- Product return within 14 days
- Official Service Center
Technical support
- Help with setup and selection
- Зацікавив товар?
Наш продавець проконсультує Вас.
- Characteristics
- Documentation
- Reviews (0)
| brand | Fatek |
| Series | FBs-Extension |
| module type | EXT |
| sku | FBs-60XYJ-D24 |
| supply_voltage_V | 24VDC |
| Number of inputs | 36 |
| Number of digital inputs | 36 |
| Input voltage | 24VDC |
| Type of discrete input signals | PNP/NPN |
| Number of outputs | 24 |
| Number of digital outputs | 24 |
| Type of digital outputs | Transistor (PNP) |
| USB port | No |
| Note | Найбільший змішаний цифровий модуль 36DI+24DO релейний; до 256 DI/DO системи. |
| Accession | No |
Documents by language
Ukrainian / English / Russian
