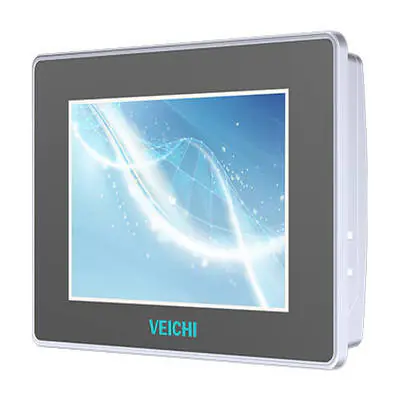

VI20-043S-F HMI Veichi VI20 Size 4.3in
Є в наявності
sku: VI20-043S-F
Є в наявності
6 500 UAH
brand: Veichi
Series: VI20
Panel type: графическая
Diagonal: 4.3 inch
Delivery and payment methods
By Nova Poshta to a branch or courier to the address
Bank transfer payment
Service and Warranty
- 24-month Warranty
- Product return within 14 days
- Official Service Center
Technical support
- Help with setup and selection
- Зацікавив товар?
Наш продавець проконсультує Вас.
- Characteristics
- Documentation
- Reviews (1)
| brand | Veichi |
| Series | VI20 |
| sku | VI20-043S-F |
| Replacement (If discontinued) | No |
| Panel type | графическая |
| Matrix type | TFT LCD |
| Diagonal | 4.3 inch |
| Chroma | 16bit |
| Width | 800 mm |
| Height | 480 mm |
| number of ports | 3 |
| Interface | RS232/485/422, RS232 |
| Protocol | Modbus RTU |
| USB port | Type-C OTG |
| Additional | CPU: 720MHz ARM, Memory: 64MB RAM+128MB Flash, LED backlight, DC24V (9-28V), IP65 front panel |
| Color rendering | Black |
