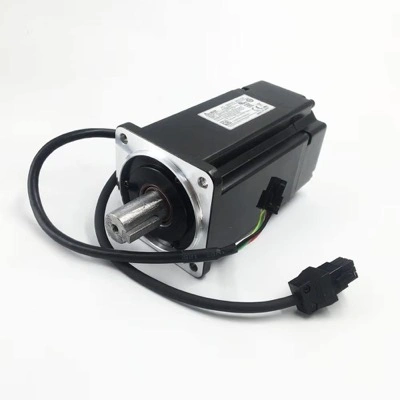

ECM-B3M-C20810RB1 Delta ECM-B3 1kW servo motor, 220V supply, 80mm flange, 3.18Nm rated torque (11.13Nm max), 3000 rpm (max 6000), 5A current, 24-bit incremental optical encoder, keyway shaft, without brake, with oil seal, built-in IP67 connector, medium inertia. Matched with ASD-B3A-1021 servo drive.
Є в наявності
Є в наявності
17 996 UAH
Brand: Delta Electronics
Series: ECM-B3
Power: 1.0 kW
Servo type: Servo motor
Delivery and payment methods
By Nova Poshta to a branch or courier to the address
Bank transfer payment
Service and Warranty
- 24-month Warranty
- Product return within 14 days
- Official Service Center
Technical support
- Help with setup and selection
- Зацікавив товар?
Наш продавець проконсультує Вас.
- Characteristics
- Reviews (0)
| Brand | Delta Electronics |
| Series | ECM-B3 |
| SKU | ECM-B3M-C20810RB1 |
| Power | 1.0 kW |
| Current | 5.00 A |
| Number of phases/input voltage | 1-ф/220В V |
| Voltage | 220 V |
| Encoder resolution | 24-bit |
| Dimensions | 80х80х118.8 |
| Flange | 80 mm |
| Programming | ASDASoft |
| Servo drive | ASD-B3A-1021-L / ASD-B3A-1021-M |
| revs | 3000/6000 |
| Servo type | Servo motor |
| Rated torque | 3.18 Nm |
| Rated speed | 3000 rpm |
| Maximum speed | 6000 rpm |
| motor_inertia | 1.370000 |
| Inertia level | Medium |
| Encoder | incremental |
